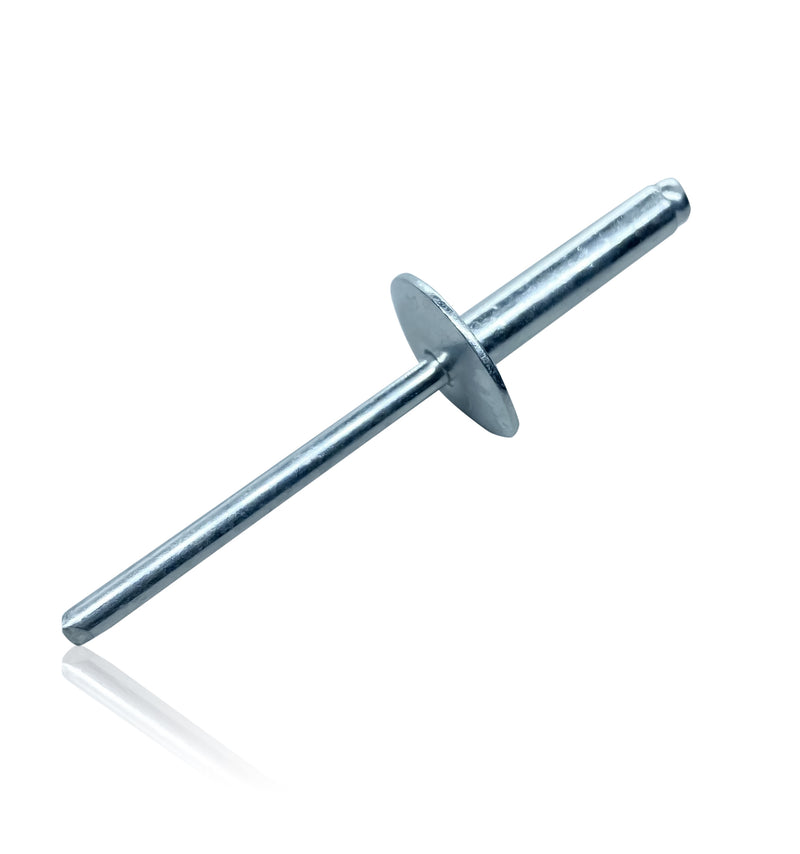

Universal Specialty Rivet 3/16" Dia | Body Panel & Trim Applications | 16940
✓ In stock
Universal 3/16" specialty blind rivet for body panel and trim fastening applications across a wide range of vehicles. The wide 5/8" flange and long 1/2"–5/8" grip range make this rivet well suited for thicker panel stacks where additional clamping depth is required. Verify hole diameter and total panel thickness before ordering.
Specifications
- Type: Specialty Blind Rivet
- Application: Universal Body Panel & Trim Fastening
- Rivet Diameter: 3/16" (4.8mm)
- Grip Range: 1/2"–5/8"
- Flange Diameter: 5/8"
Vehicle Fitment
- Universal — body panel and trim fastening on most domestic and import vehicles; verify hole diameter and panel thickness before ordering
Cross-Reference Numbers
- SMS Part#: 16940
What makes this a "specialty" rivet?
Specialty rivets are distinguished from standard open-end blind rivets by their specific combination of diameter, grip range, and flange size — engineered for particular panel thicknesses and hole patterns found in automotive body and trim assembly. The 3/16" diameter with a wide 5/8" flange targets applications where a standard 1/8" or 5/32" rivet would be too small.
Why does the grip range (1/2"–5/8") matter?
The grip range defines the total combined thickness of all panels the rivet can clamp. This rivet's 1/2"–5/8" range suits thicker assemblies — such as multiple layers of body sheet metal, brackets, and trim panels stacked together. Installing this rivet in a panel stack thinner than 1/2" will result in an incomplete set.
What drill bit size do I use for a 3/16" rivet?
Use a 13/64" (5.2mm) drill bit to create or clean up the pilot hole for a 3/16" rivet. This gives the rivet shank a snug fit without binding, ensuring a clean set and maximum clamp force.
Is this rivet suitable for structural repairs?
This rivet is designed for body panel and trim fastening, not structural frame or load-bearing repairs. For structural automotive repairs, consult OEM specifications and use rivets rated for structural loads.
What pack sizes are available?
Available in packs of 25, 50, 100, and 150 to suit single repairs or shop stock needs.
